A2050TII - 50MM DYNAMIC: TIE ON BLOCK

Part # = A2050TII
Description = 50mm TIE ON BLOCK
Length (mm) = 72
Line Dia (mm) = 5-10
Shackle Pin (mm) = -
Breaking Loag (kg) =
Max Dynamic Load (kg) =
Weight (g) = 60

50mm Single Tii-On Block.

Our Tii-On blocks feature a stainless-steel loop at the head of the block. This gives our Tii-On range maximum strength and reliability with minimal cheek separation when tied on and loaded up with a soft shackle. The stainless-steel head loop also ensures the block stays in the right orientation when being used.

Becket – The large central rivet not only reduces the overall weight but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.

Bearings – Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.

Fitting Instructions – Tii-On blocks rely on the correct attachment method to give them maximum strength.

When attaching a Tii-on block you must feed the rope around the central axle and through the head of the block.

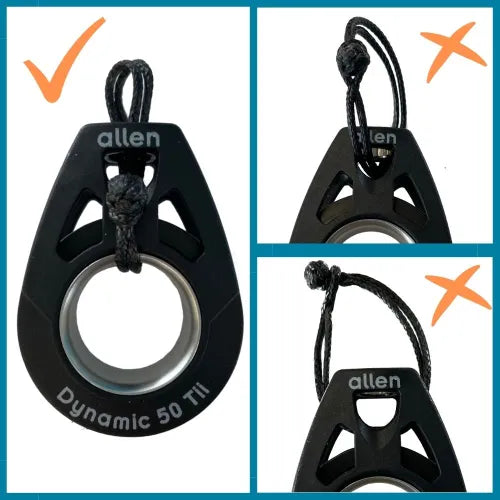

When possible, Tii-on blocks should be attached with a crossed/ through threaded line. (see pictures for example).This is very important, as it keeps the line load pulling the side cheeks together.
