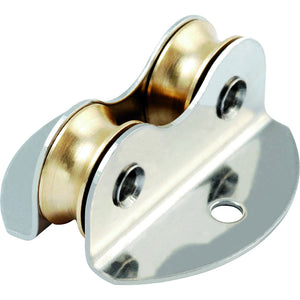

A4401- THROUGH DECK DOUBLE WITH BRASS SHEAVE

16mm Double Through Deck Plain Bearing Block With Brass Sheave

Length (mm) = 38
Max Line Dia (mm) = 5
Shackle Pin (mm) =
Breaking Loag (kg) = 275
Max Dynamic Load (kg) =
Weight (g) = 27

Designed to be lightweight and cost-effective. Ideal for low loaded systems, such as control line bungee take-ups or rope guides.

The brass sheave allows this block to be paired with wire as well as offering more durability over the acetal sheave.

Plain Bearing – The brass sheave spins around the central axle. This type of bearing has a long lifespan and is very low maintenance.

Lightweight Body – The body of this block is formed in stainless steel for a lightweight yet robust frame.

Through Deck – This block is designed to guide rope or bungee through a surface. It offers less friction than a deck bush, but cannot withstand high loads.
